Gas-tight SCHOTT Battery Lids and Connectors

Battery Lids and Connectors

Reliability-critical battery and capacitor applications require rugged, long-lasting packaging designs. Offering durable hermetic protection, glass-to-metal sealing (GTMS) is the technology of choice for lithium primary and industrial-grade lithium-ion battery lids, as well as gas-tight caps for aluminum electrolyte capacitors and ultracapacitors.
GTAS_cylindrical-battery-cell-comparison_

Eliminating moisture intrusion and electrolyte leakage

SCHOTT Battery and Capacitor Lids are designed to eliminate moisture intrusion and electrolyte dry-out by using an inorganic, non-aging glass seal. Organic polymer and rubber versions are prone to aging in harsh conditions. As a specialty glass expert, we offer customized battery and capacitor GTMS to fit with different electrolytes and/or specific application requirements.
GTAS_prismatic-battery-lid_16-9_RGB

Simple and rugged for more economical battery designs

Inorganic and robust glass-to-metal or aluminum lid designs allow battery developers to reduce the number of parts needed. This enables a simplified lid construction, potentially even reducing the number of components used for the battery pack as a whole by bringing reliable, long-term hermeticity to the cell level.
Group of SCHOTT glass-to-metal-sealed battery lids

Product variants

SCHOTT offers GTMS lid systems in standard or customized geometries for cylindrical and prismatic cell designs. To provide optimal housings for lithium batteries and capacitors operating in a broad range of conditions, our hermetically sealed lids are made of robust metals such as steel, stainless steel, or aluminum, all matched with specialty glass.

More about variants
Range of silver SCHOTT Thermal Battery Covers
Prismatic Lithium-Ion battery lid from SCHOTT
SCHOTT Connector for Lithium-Ion batteries
Cylindrical Lithium-Ion battery lid from SCHOTT
SCHOTT® capacitor lid with copper pin
Microbattery-coin-cell-two products-comparison

Hermetically sealed lids for years of reliable performance

SCHOTT lid systems are designed to provide dependable protection for lithium batteries and aluminum electrolyte capacitors and ultracapacitors for their entire lifetime, in many cases up to 20 years. Chemical stability, high temperature resistance, and autoclavability are further reasons why leading customers all over the world rely on these state-of-the-art battery and capacitor housings from SCHOTT.

Explore product properties in detail
    Long service life
    Long service life
    Hermetic glass-to-metal sealed lids offer a lifetime of 20 years or more.
    High electrolyte-resistance
    High electrolyte-resistance
    High chemical robustness against standard electrolytes or HF, depending on design and glass type.
    Extreme temperature stability
    Extreme temperature stability
    Inorganic materials enable high temperature resistance from -60°C to +150°C.
    High pressure resistance
    High pressure resistance
    Robust custom designs deliver pressure resistance for high-pressure applications.
    Mechanical strength
    Mechanical strength
    Compression sealed designs offer high mechanical strength.
    SCHOTT MiniCaps® : Super slim microbattery lids

    To protect your privacy, external content will only be loaded with your consent. Refer to our Cookie Policy for detailed information.

    Related products

    SCHOTT offers a range of products for batteries and capacitors, including battery fuses and HF-scavenging glass, among others.
      HF (Hydrofluoric Acid) Scavenging Glass
      HF (Hydrofluoric Acid) Scavenging Glass
      Extending the life of lithium-ion batteries and the preservation of their capacity is a major challenge in the development of ever more efficient battery systems. Hydrofluoric acid (HF) absorbent glass powder from SCHOTT is capable of permanently binding hydrofluoric acid and permanently preventing its damaging effect on the cells.
      Explore
      Hermetic Sensor Packaging
      Hermetic Sensor Packaging
      SCHOTT’s sensor packaging enables reliable protection and functionality of sensor electronics, especially in harsh-environment, performance-critical applications. SCHOTT offers a broad portfolio of sensor housings using advanced hermetic sealing technologies to guard even the most sensitive electronics.

      Wafer

      hydrogen
      Explore
      CompRite™ Compressor Terminals
      CompRite™ Compressor Terminals

      Compressor terminals supply electricity to compressors in applications such as refrigeration, chilling, and air conditioning. Compressor terminals prevent refrigerant leakage and maintain hermeticity under adverse operating conditions to support efficient and reliable functionality of compressors.

      Explore
      HEATAN®
      HEATAN®
      HEATAN® high-temperature sensor feedthroughs deliver unparalleled protection and performance for sensors in extreme temperatures of 1000°C and above. Made using a unique combination of materials and state-of-the-art sealing technology, they enable next-generation sensor designs.
      Explore
      Feedthroughs for Airbags and Seatbelts
      Feedthroughs for Airbags and Seatbelts
      Vacuum-tight feedthroughs and headers from SCHOTT are essential for the dependable function of airbags, seatbelts and circuit breakers. They protect the ignitor charge from moisture and the environment, while enabling reliable electrical signal transmission to the pyrotechnic load in the event of an accident.
      Explore
      Hermetic Packages for LiDAR Sensors
      Hermetic Packages for LiDAR Sensors
      SCHOTT manufactures advanced hermetic packages that offer reliable protection for laser diodes, photo diodes, and MEMS mirrors in automotive LiDAR systems. SCHOTT works collaboratively with LiDAR sensor manufacturers to develop components optimized for high-volume manufacturing that support autonomous driving applications.
      Explore
      Ambient Light
      Ambient Light
      SCHOTT’s ambient automotive lights generate attractive, robust and functional exterior and interior illumination, delivering design freedom and qualified safety. Driven by passion and precision, SCHOTT is a reliable and established partner of the world's leading automotive OEM and Tier 1 customers.

      Fibre, Ambiance, Ambient Light, Ambiente
      Explore
      Lithium Ion Battery Protectors
      Lithium Ion Battery Protectors
      SCHOTT SEFUSE® D6S battery fuses and SEREB® thermal battery protection switches are used for the protection of li-ion battery packs. SEFUSE® D6S battery fuses protect li-ion batteries from overcurrent and overcharging. SEREB® thermal battery protection switches prevent potentially dangerous instances of overheating.
      Explore

      Man charging an electric vehicle with woman looking on
      News & Innovation stories

      Maintaining capacitor performance over years

      SCHOTT GTAS® capacitor lids can offer up to a 20% reduction in capacitor package volume, a 60% reduction in capacitance loss, and a 50% improvement of internal resistance, resulting in an increase in product longevity of 10-15 years.

      Read more

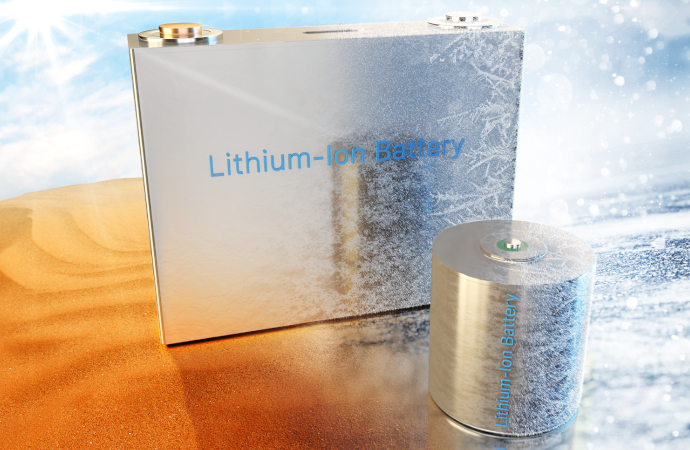

      Two silver lithium-ion batteries

      Battery leak-tightness critical to EV performance

      EV applications present challenging conditions for battery cells due to vibrations of the car, heat, inclement weather and environmental elements such as dirt from the street. Therefore, it is paramount for battery cells to be leak-tight and hermetic for maximum performance and safety.

      Read more

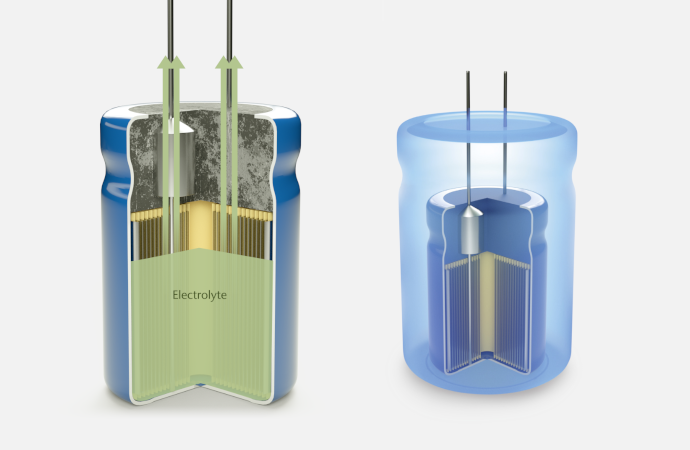

      Illustration of the inside of an aluminum electrolyte capacitor
